Coal Mine Conveyor,Chain Sprocket Wheel with High Quality

Coal Mine Conveyor,Chain Sprocket Wheel with High Quality

Haojiang steel structure logistics park,Wuzhi County,JiaozuoCity,Henan Province,China – Henan – China, Rest15038176133Facebook
Twitter
http://www.shuangzhijx.com
Industry > Machinery, Engines, Equipment, Systems, Laser Physics...
Source
Henan.
50 Crossingssee all
Henan (China, Rest) - Arkhangelsk (Russia)Henan (China, Rest) - Bảo Lộc (Vietnam)
Description

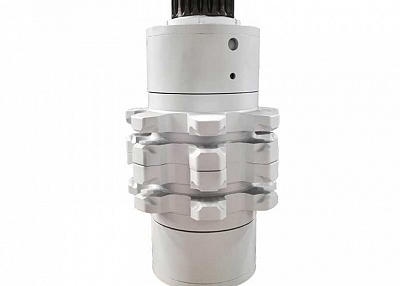

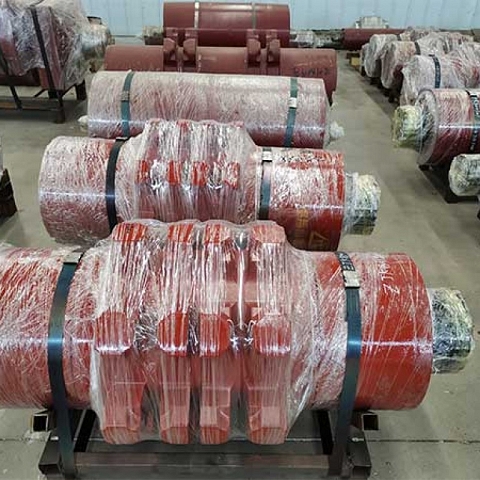

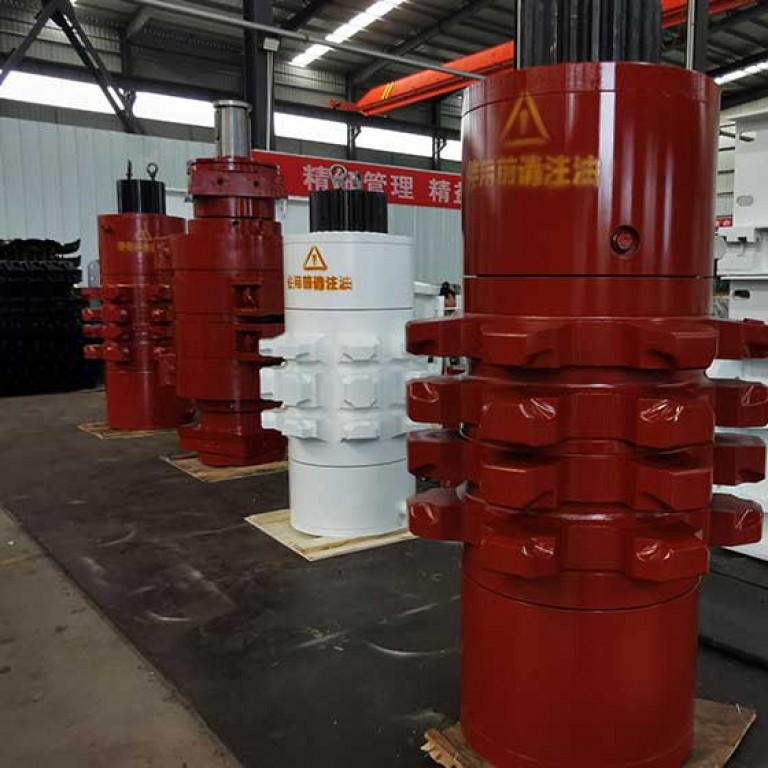

Sprocket assembly is mainly composed of bearing cover, bearing housing, roller, sprocket body, shaft, floating seal, rolling bearing and so on. It is processed and formed by the processing center, the tooth surface is hardened, the inner hole is the flat key, and the shaft is assembled together, the power is input by the reducer, and transferred to the sprocket through the sprocket shaft, so that the sprocket drives the scraper to run.

Sprocket assemblies from different manufacturers have different structure and sizes. Each sprocket assembly has its corresponding figure number. Two bearing seats of sprocket assembly are respectively placed on the left and right side plates of the head frame, and the sprocket assembly is fixed on the head by positioning pin. Easy to install. Meanwhile, remove the rustproof layer of the spline at the end of the shaft, scrub it clean and then butter it. After the assembly of the sprocket assembly and the head frame, industrial gear oil is injected into the oil tank through the sprocket assembly oil injection hole to ensure the normal operation of the sprocket assembly.

As we all know, the main product of Henan Shuanzhi is sprocket components, sprocket components of model drawings of host manufacturers such as Benniu, Zhangjiakou, Zheng Coal machine, Sany, Lin Zhong and Huainan Longbi, etc., which have undergone layer upon layer inspection from quality and appearance operation, welcome new and old customers to visit the factory.
