Description

Hot dipped galvanized guardrails are durable system that can provide long time protection to the highway vehicles. The complete system is usually composed with beams (w beam or thrie beams), galvanized posts and hot dipped terminal ends. The anti-collision safety grades are: A/B/SA/SB/SS.

Popular size SciSe exports:
Corrugated steel plate beams: Two-wave profile: 4320mm×310mm×85mm×3/4mm; Three-wave profile: 4320mm×506mm×85mm×3/4mm
Matching posts for two-wave: 114/140mm×4.5mm
Upright posts for three-wave: 130mm×6mm, 140mm×4.5mm
Anti-collision grade: A/B/SA/SB/SS

Applied Standards for Manufacture and Quality Control: JT/T281-1995(Corrugated Sheet Steel Beams For Expressway Guardrail - China), AASHTO M-180(Corrugated Sheet Steel Beams For Highway Guardrail - USA), RAL-RG620 (German) or any other International Standards.

Hot dipped galvanized steel guardrails are considered the effective safety barriers for highway, expressway and bridges. With thick zinc coating surface, the galvanized w beams or thrie beams offer excellent corrosion resistance and rust resistance property. The long service life it offers renders the cost for the high standard galvanizing.

Hot Dip Galvanized straight Guardrails with Steel End Rings:

Steel Guardrails straight, 3.8Mx2.6MM, finish: complete-hot Dip Galvanized, Heavy Zinc Plating Anti corrosion protection
Steel end wing: 3.8Mx2.6MM, finish: hot Dip Galvanized Anti corrosion protection

Guardrail, beams, posts, before installation:

Hot-dipped Galv. Guardrail beam and posts Heavily galvanised guardrail panels w beam type

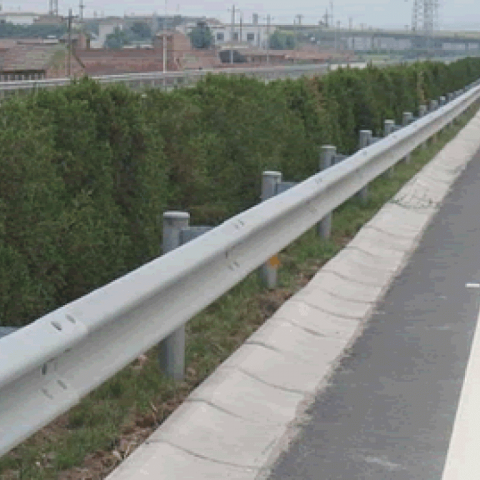

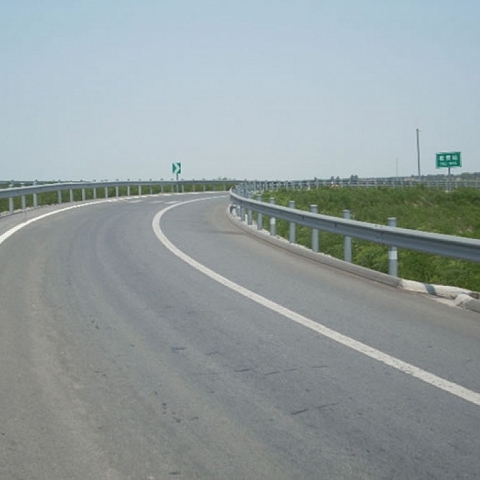

Guardrail barrier system installed, in practical project:

Guard railing straight finished with zinc coated HDG, designed with steel end ring Hot-dipped Galvanized Guardrail Application

Base Steel: Steel Grade Q235B (equivalent to S235JR according to DIN EN 10025 and Gr. D according to ASTM A283M) or Q345 (S355JR / ASTM A529M 1994).

The thickness of the Steel: 3mm, 4mm, 6mm or according to consumers’ request.

Surface Treatment: Hot dip galvanized or Power coated.

The Thickness of Galvanizing (Double Sides): 550g/m2 (40µ) or 1100 g/m2 (80µ) or 1200 g/m2 (85µ) or as per your request.

Certificate: ISO9001, ISO14000, SGS, CE.

Features: Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security, environmental protection, etc.

Other special specification as per client's requirement or drawings.

System Advantages
- The barriers ensure minimum damage to the vehicle and its occupants.
- During collision, the beam absorbs maximum energy by flattening out laterally and restrains the vehicle from veering over.
- Prevents the vehicle from skidding back onto the carriageway by controlling exit angles through gradual deceleration and effective redirection of the vehicle back on to the road.
- Enables quick repairs in case of accidents.
- All components are galvanized for longer life.

Beam Types Photo Illustration:

Galvanized Steel Highway Guardrail of Different Beam Types
1.Two-wave Corrugated Steel Beams 2. Three-wave Corrugated Steel Beams

About the company

SciSe Highway Barriers Co.

Activity: SciSe Highway Barriers Co.

SciSe is a China manufacturer and exporter of Guardrail Barrier products for expressway, bridge and highway traffic safety. Our products range from the guard rail highway barriers, sound barriers and fences to the various accessories for installation of barriers and fences. We use choic cold processing steel strip to make quality guardrail panels for our customers, going through flattening, punching, galvanizing or plastic coating, fabricating and shearing process. The guardrails can be traditional beam type solid guardrail panels or economic cable guardrails.The steel guardrail panels are made of corrugated plates in symmetrical shapes of waves. It is either concave (bowing away from the traffic lane) or convex (bowing towards the traffic lane).The guardrail beams we supply are 10 gauge and 12 gauge materials, ranging from 5’ to 60’ radius. Made from strip steel coils, the guardrail panels have a normal thickness of 2mm to 10mm. Metal fittings we supply include brackets, beam posts, columns and terminals for completing a full guardrail barrier system. We supply and manufacture beam guardrails in accordance with China National Standard JT/T281-1995(Corrugated Sheet Steel Beams For Expressway Guardrail - China), AASHTO M-180(Corrugated Sheet Steel Beams For Highway Guardrail - USA), RAL-RG620 (German) or any other International Standards. The base steel we use meetsSteel Grade Q235B (equivalent to S235JR according to DIN EN 10025 and Gr. D according to ASTM A283M) or Q345 (S355JR / ASTM A529M 1994). Scise Featured Products: Highway Guardrails Where the Guardrail Barriers are Used: Highway guardrail is commonly used as a passive barrier system for highway traffic security. The steel guard railings are installed widely along the roadway and highways, especially at curves and slopes, parking lots, road corners, dead end street and other site that may cause danger or accident to people or cars. How the Guardrail Panels Work: Guardrail panels fixed along the expressway can guide the direction of the vehicles and keep them running within the safe limit. In case any traffic accidents happen such as vehicle collision, the guardrail barrier will play an important role by decelerating the speed of the collided vehicles. Due to the designed curved shape of the guardrail panels, they will allow a slowing down of the crashed vehicle without hurting it seriously. In this way, the guard rails can reduce the danger level of the involved vehicles by keeping them safely within the road, allowing them slow down and directing them back to the right way. What are popular surface treatments for the guardrail beams: We supply three types of steel guardrail beams according to the finishes: Common galvanized steel guardrails , zinc coating quantity at about 550 gram/ m2 (40µ); Heavy hot dipped zinc plated guardrails, zinc coating quantity at about 1100 g/m2 (80µ) or 1200 g/m2 (85µ); PVC coated steel highway guardrails. Functions of the Surface Treatments to the Finished Guardrail Panels: Steel galvanized guardrail coated with zinc offers more durability and maximum strength. The zinc coating also prevents discoloration and weak points caused by rust and corrosion. The zinc or PVC coating enables the following five features for the steel guardrails: 1, Anti-rusting; 2, Anti-corrosion; 3, Longer service life with protective coating layer; 4, Ultraviolet proof; 5, Anti-aging. Highway Guardrail Panels Types according to Beam Types: Type I. W-beam guardrails Type II. Thrie beam guardrails Type III. Square Box beam guardrail barriers
